BARYON
Sn 235

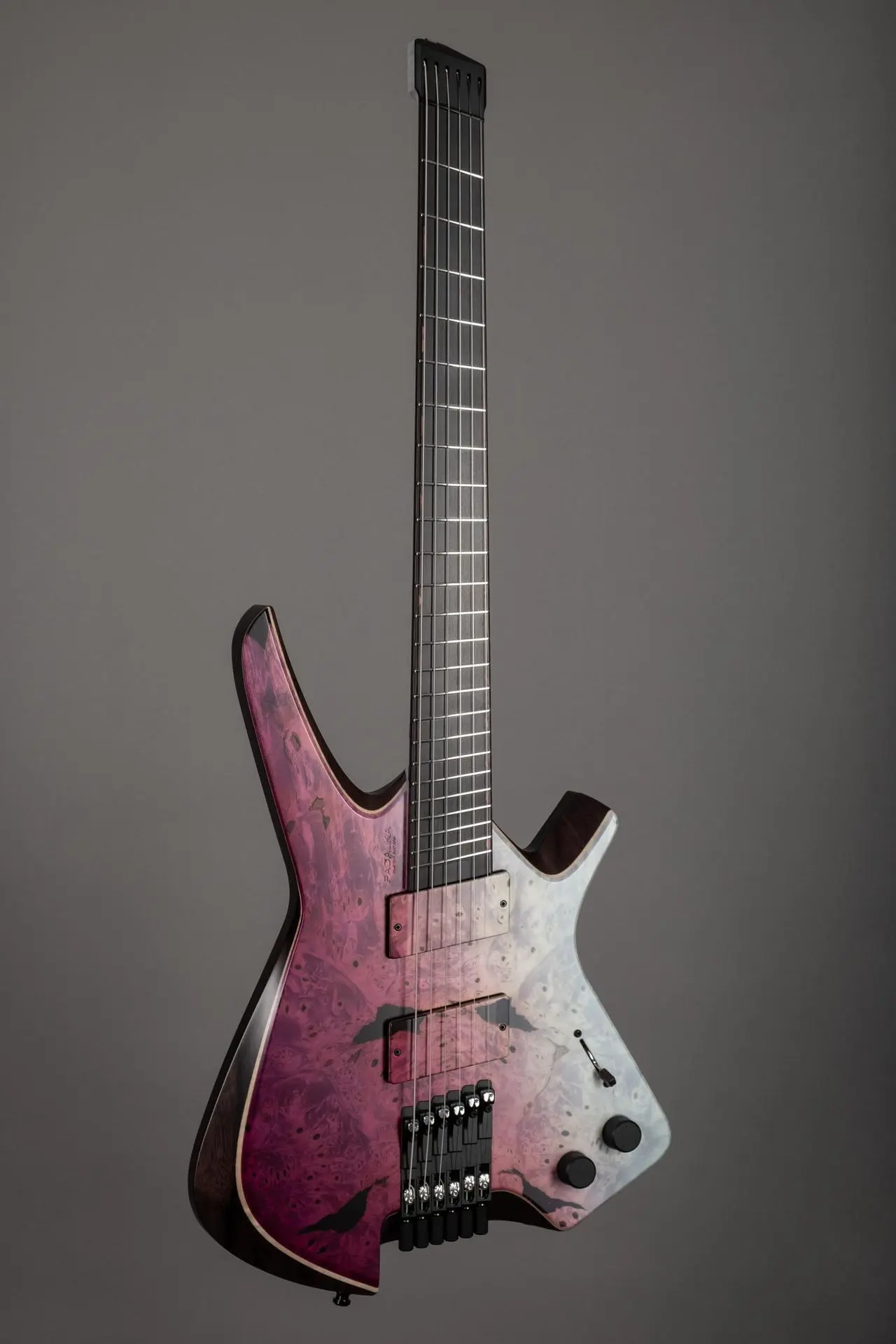

This guitar is a counterpart to the Master Series bass I built for Dingwall this year. Both instruments share the same design language and materials, with the necks made from a single neck blank originally prepared for the bass.

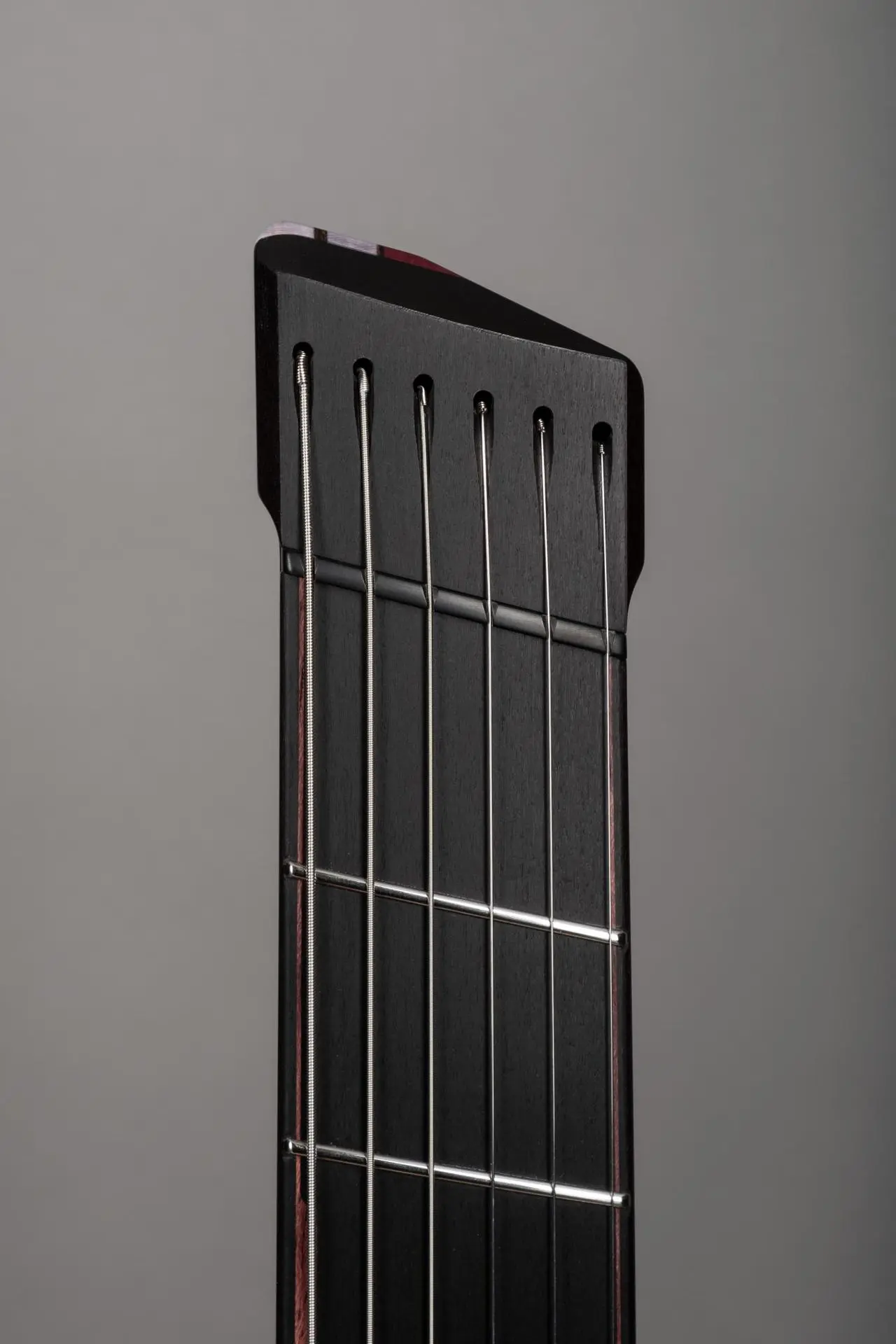

When resawing the thick blank needed for the Model Z's angled headstock, the offcut is perfectly sized for a headless guitar neck,
allowing the two instruments to be genuinely and materially connected.
Rather than scrap quality wood, this offcut became a matching instrument—same grain, same character, same finish.
GENERAL
- Scale 25-26"
- Number of strings 6
- Frets 24 stainless steel
- Weight 2.85kg
NECK
- Construction set-in

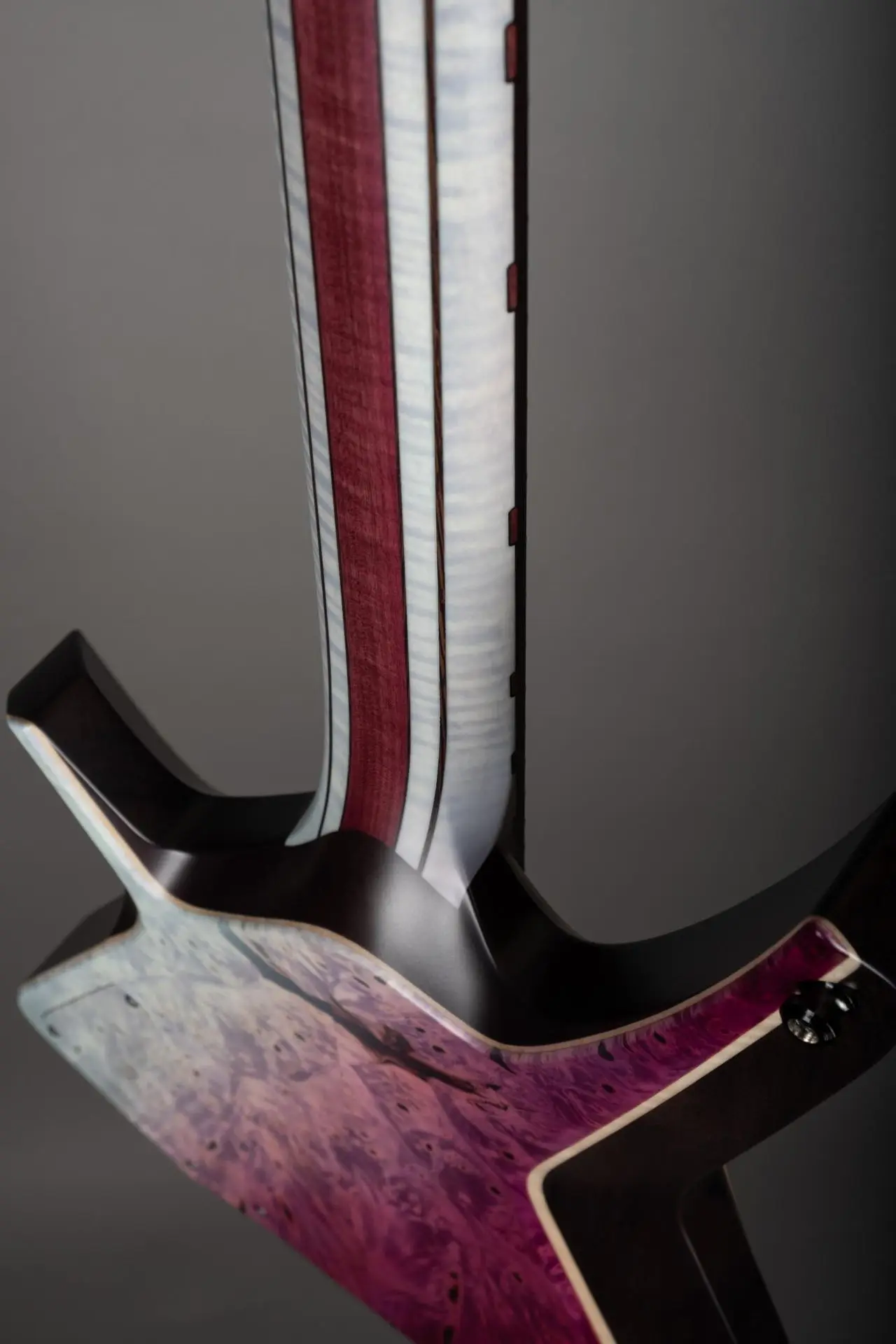

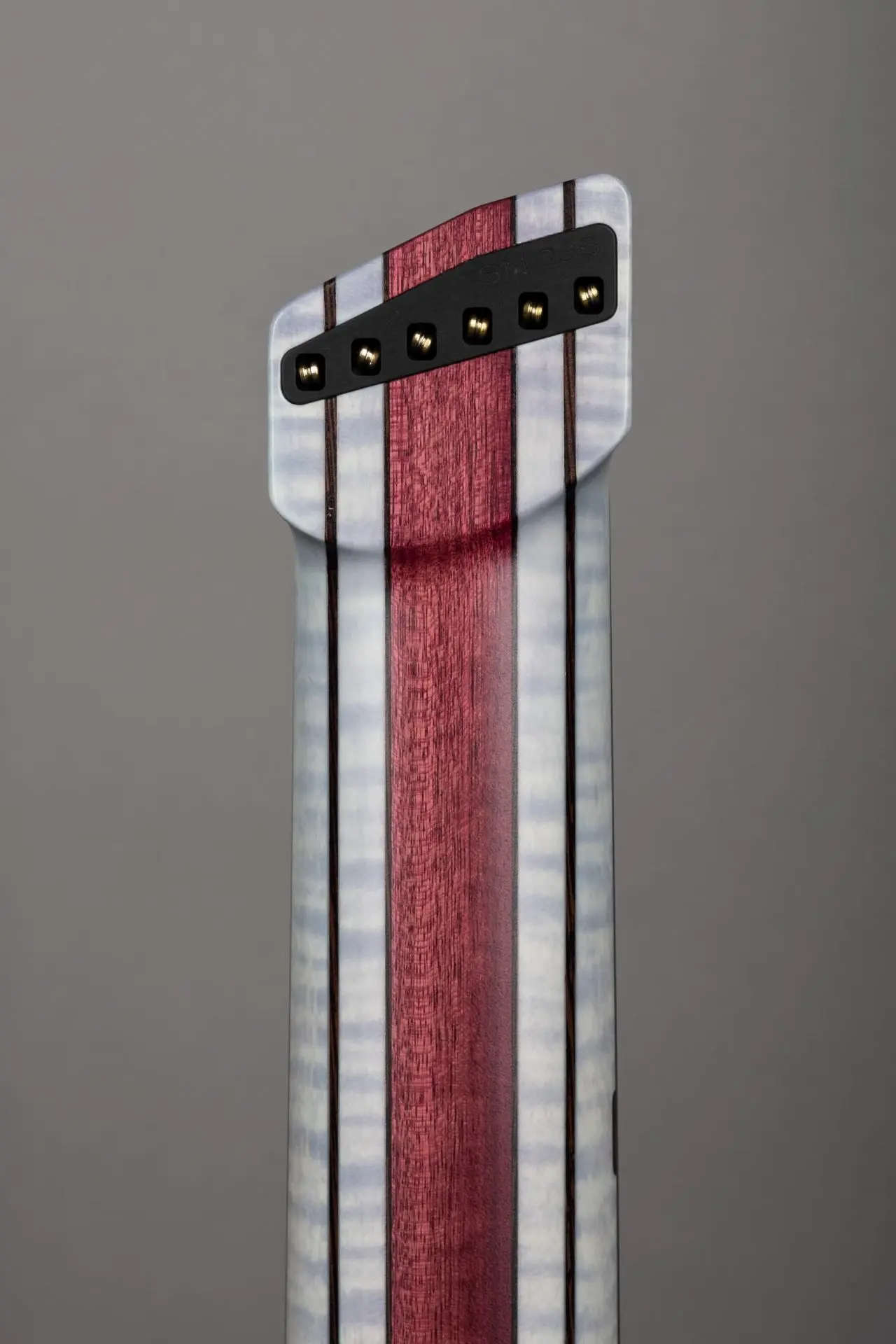

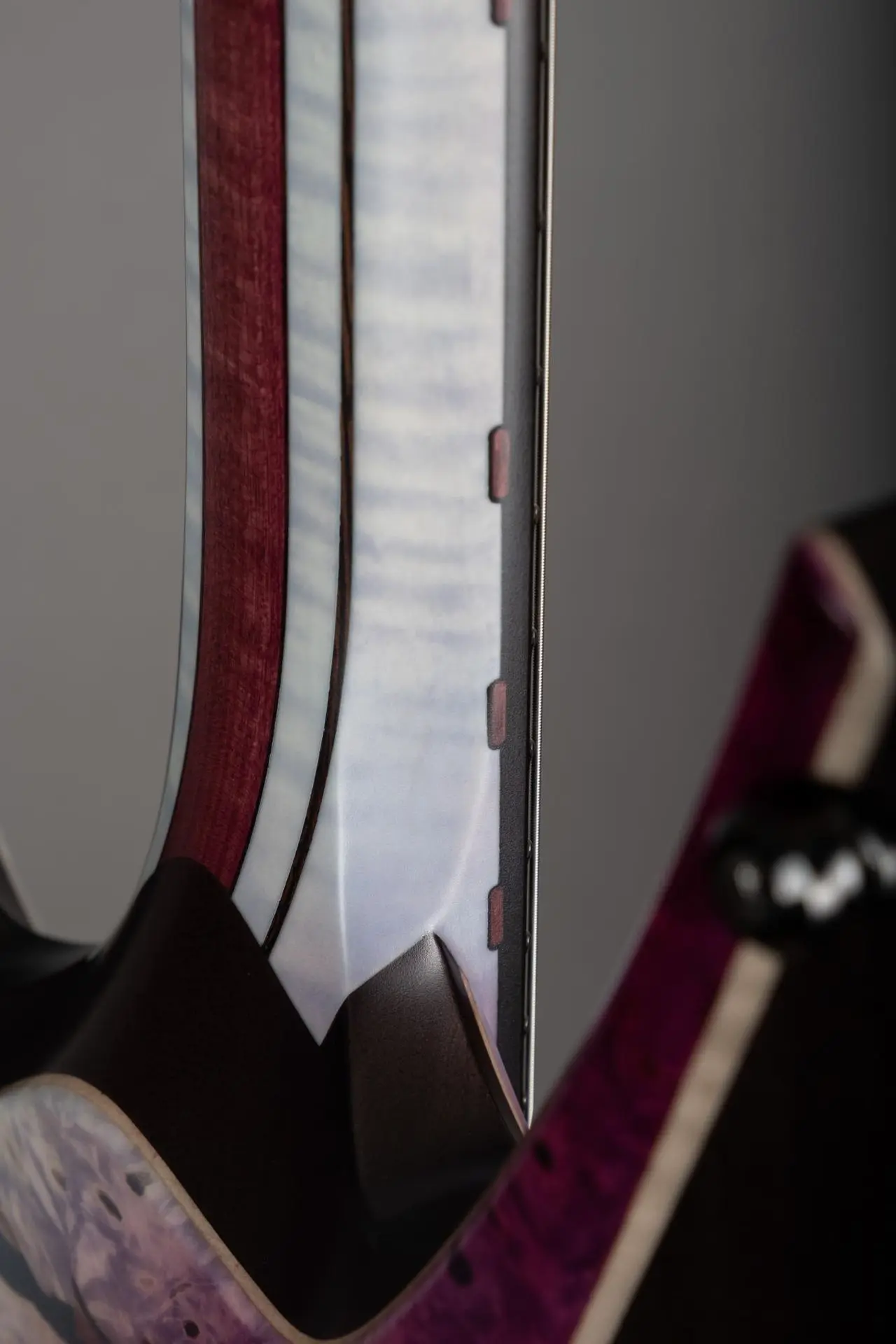

- Material flame maple - wenge - purpleheart

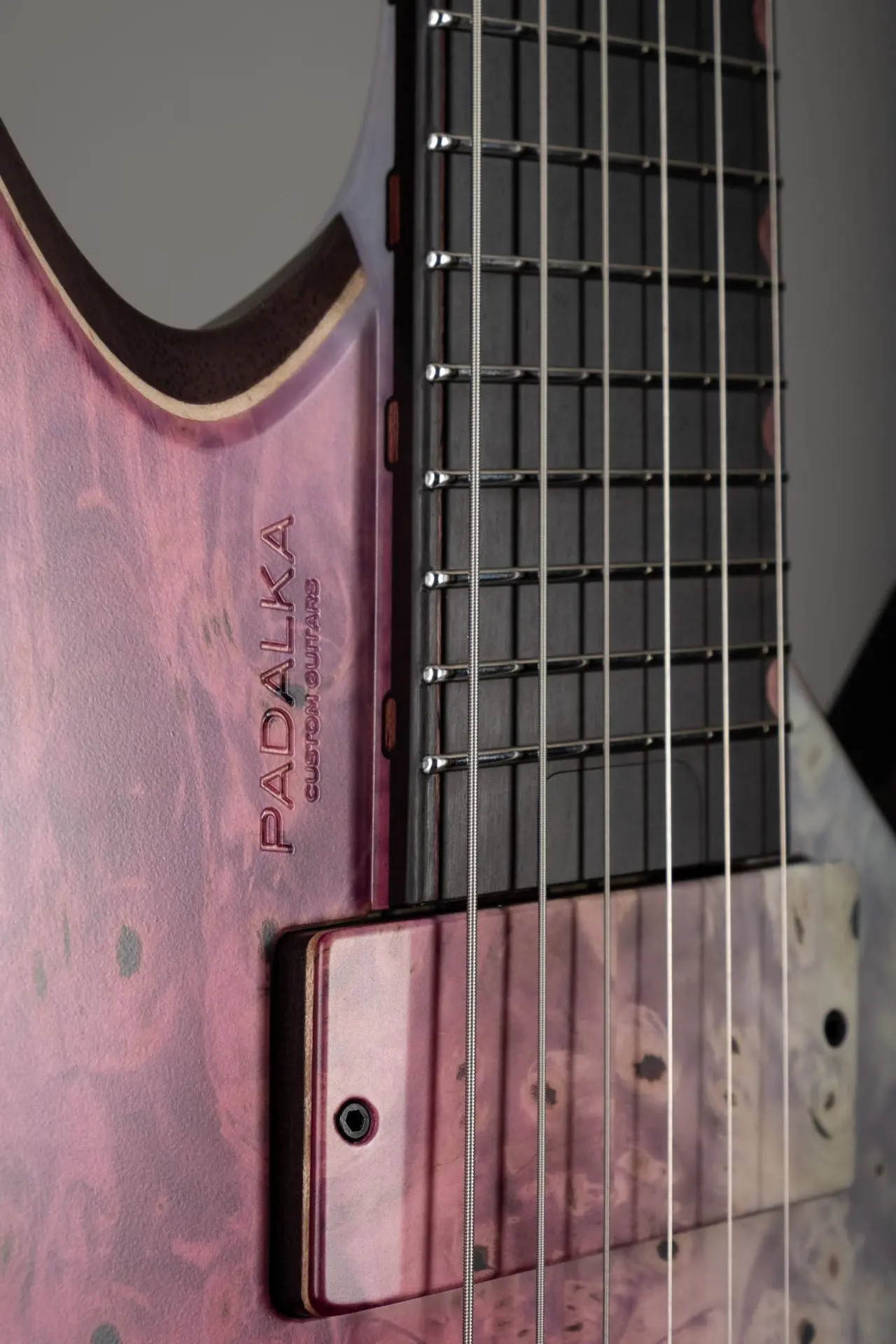

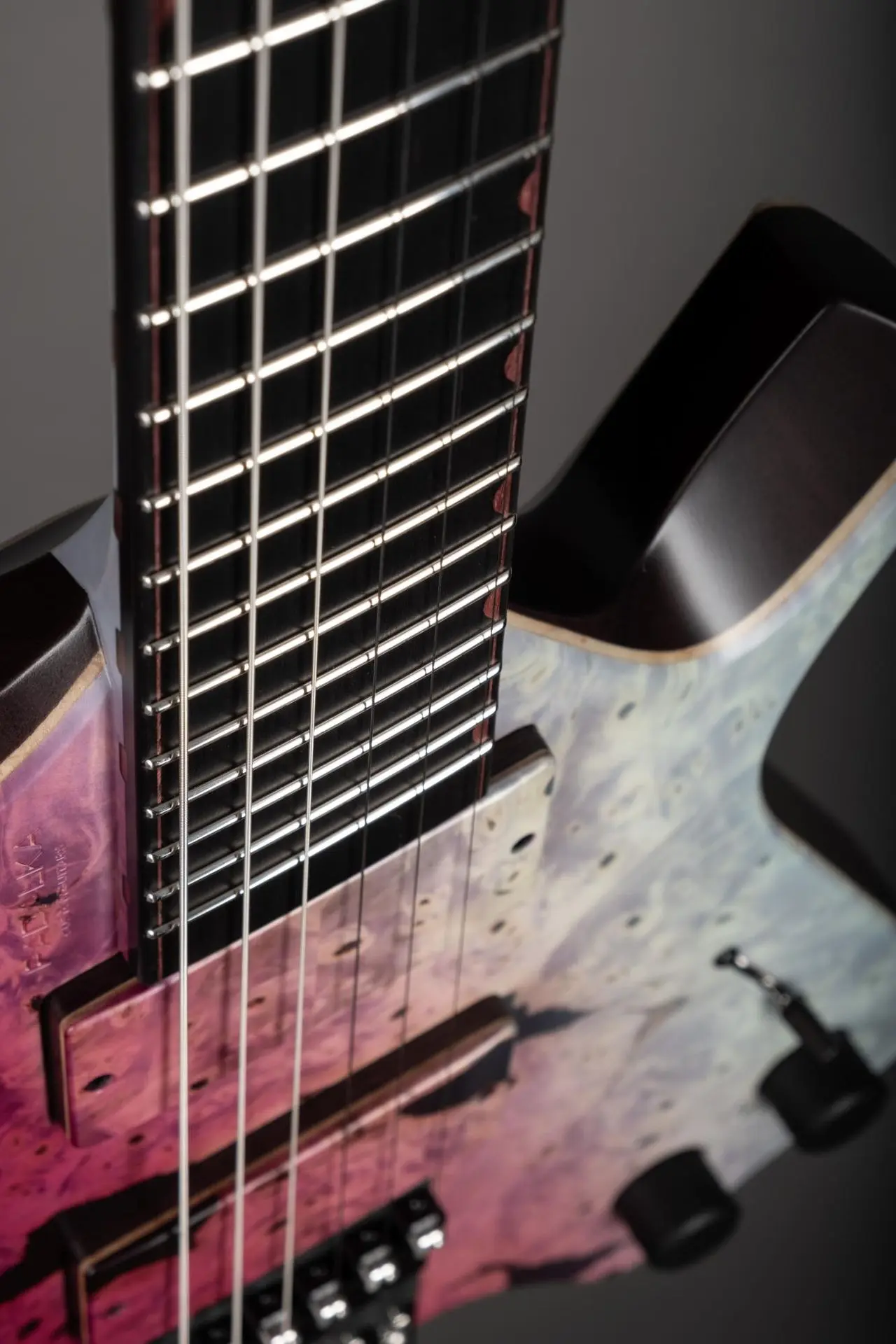

- Fretboard obsidian ebony
- Profile "C", 19-21mm
- Fretboard radius compound 12-20"

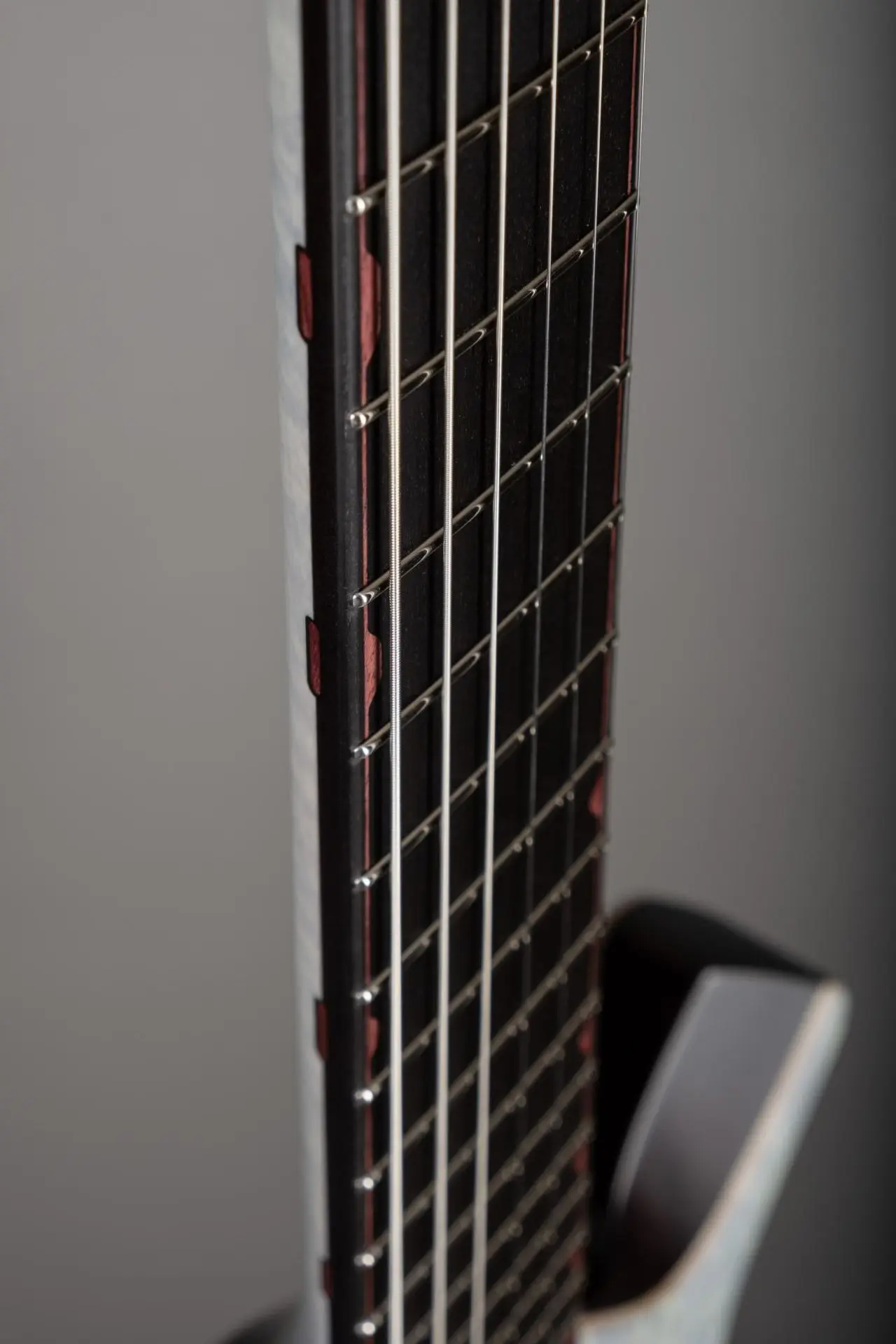

- Side markers empty ovals, ebony/purpleheart
- Inlays wavy binding, purpleheart
- Nut garolite
- Reinforcement full length carbon rods
BODY
- Construction solid body

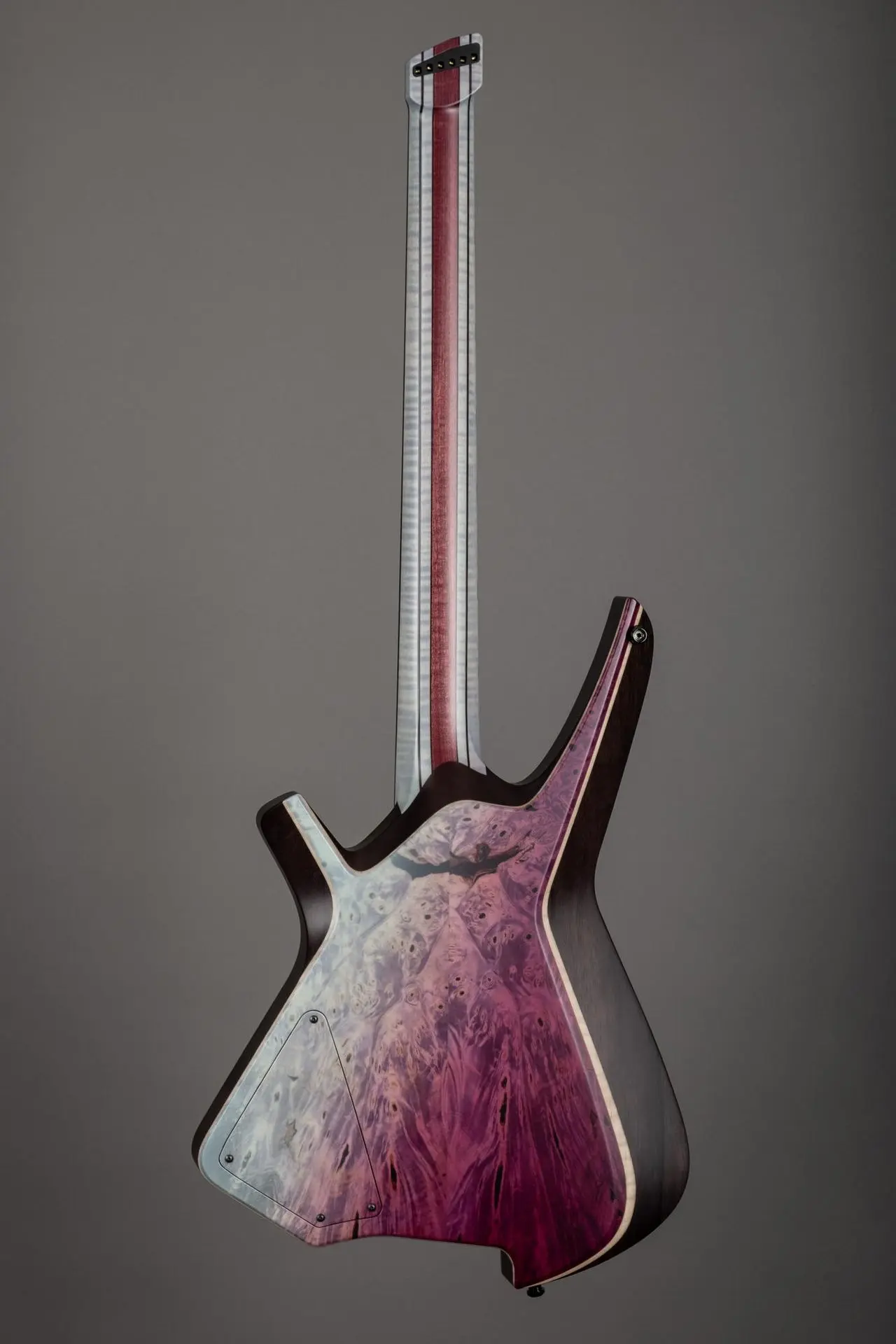

- Material swamp ash

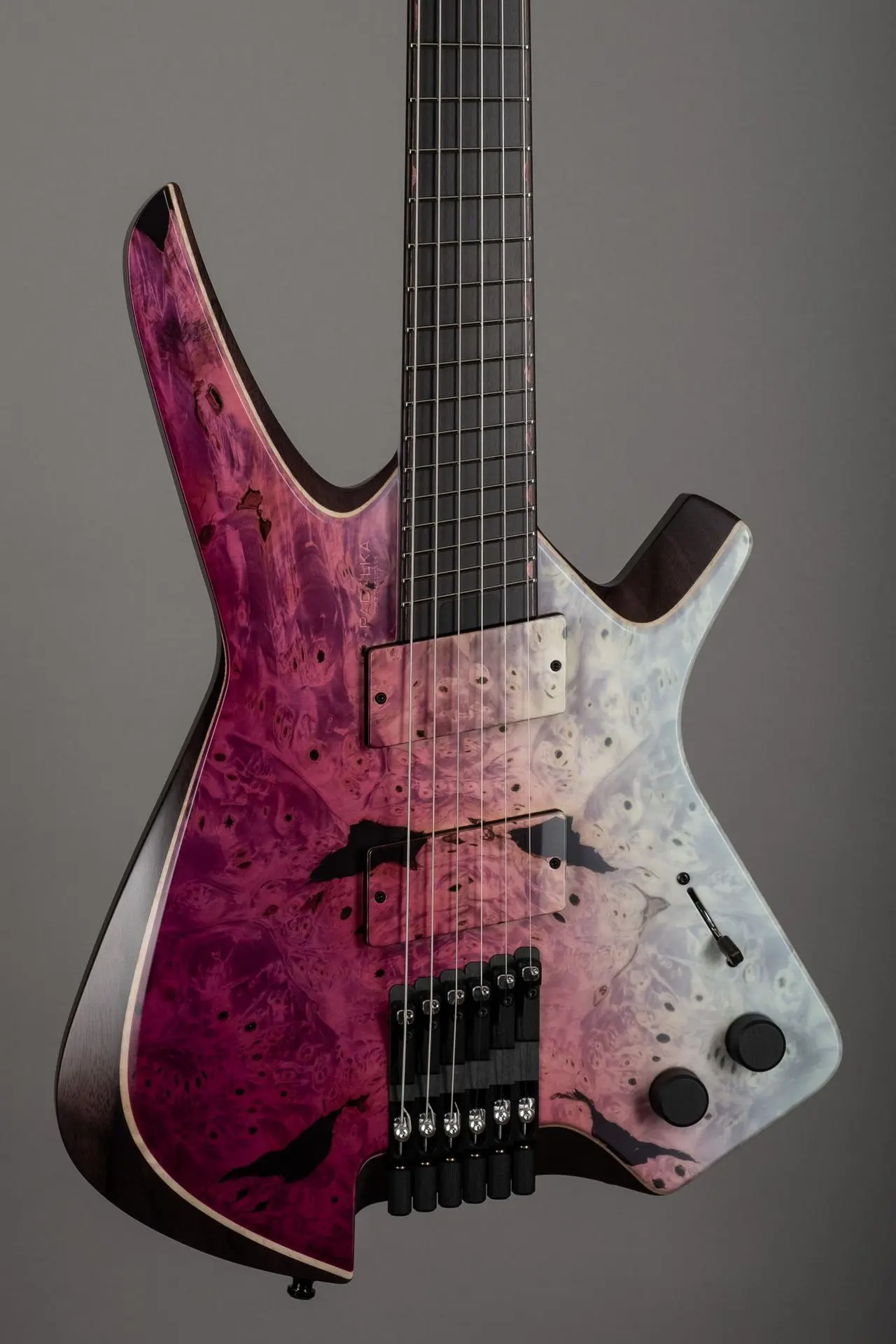

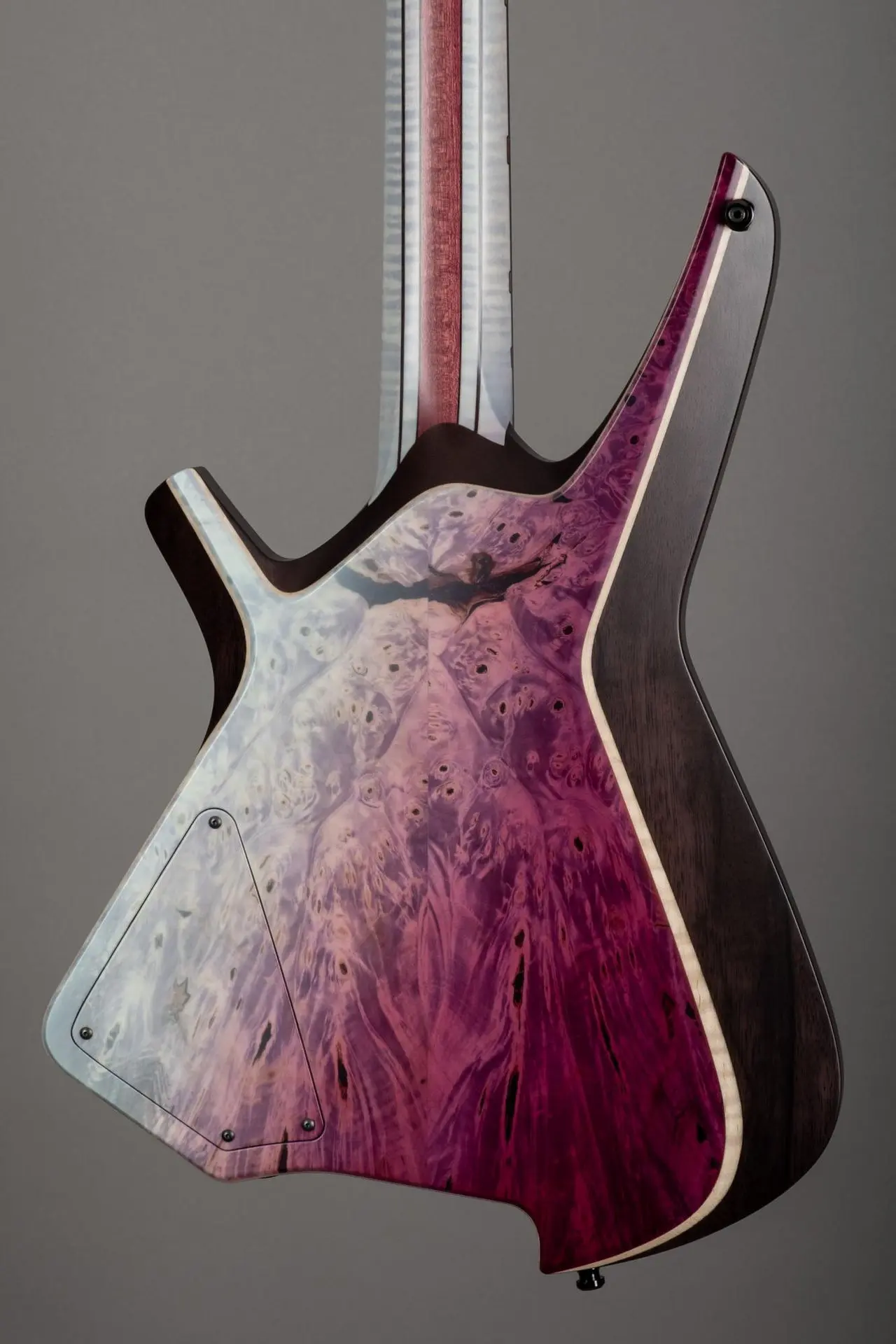

- Top and back buckeye burl, maple contrast layer
ELECTRONICS AND HARDWARE

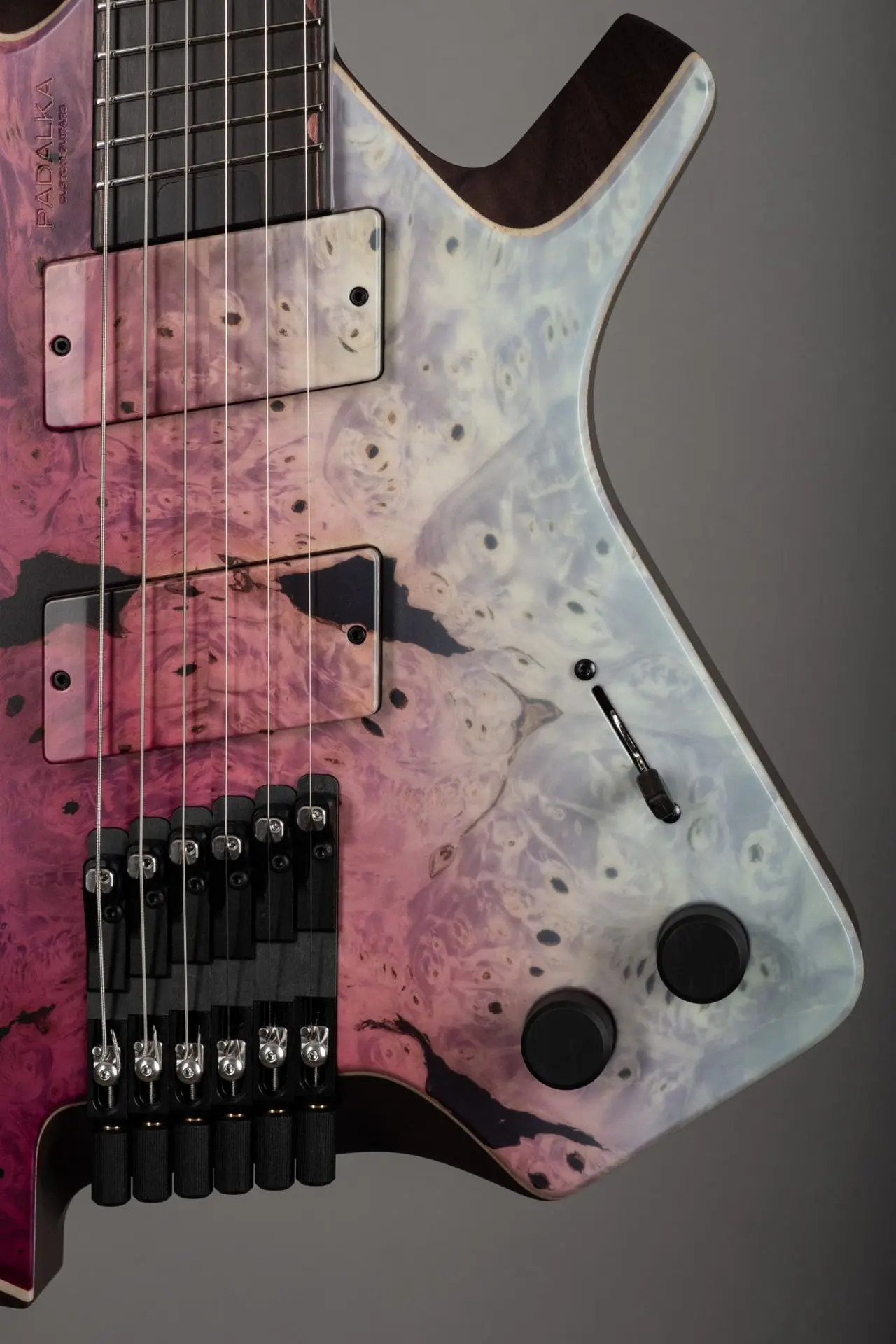

- Pickups Pegcity SuperClutch
- Controls Volume, Tone, 5-way switch

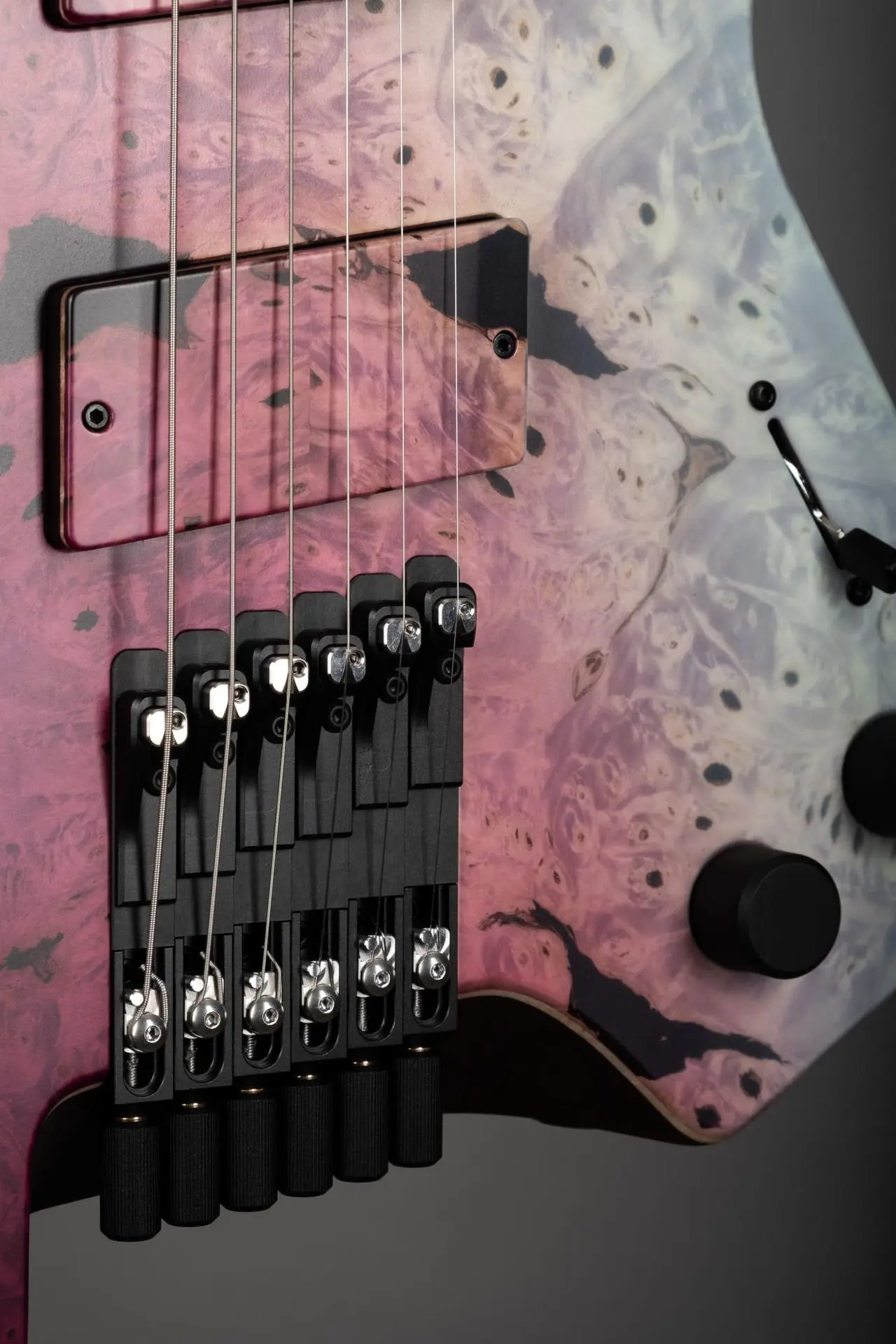

- Bridge Padalka headless bridge
- Straplocks Schaller
OTHER
- Pickup covers ebony
- Knobs ebony
- Tool box ebony
